Fleece Performance All-Lights-On Modules FPE-GM-ALO-37

Product Description

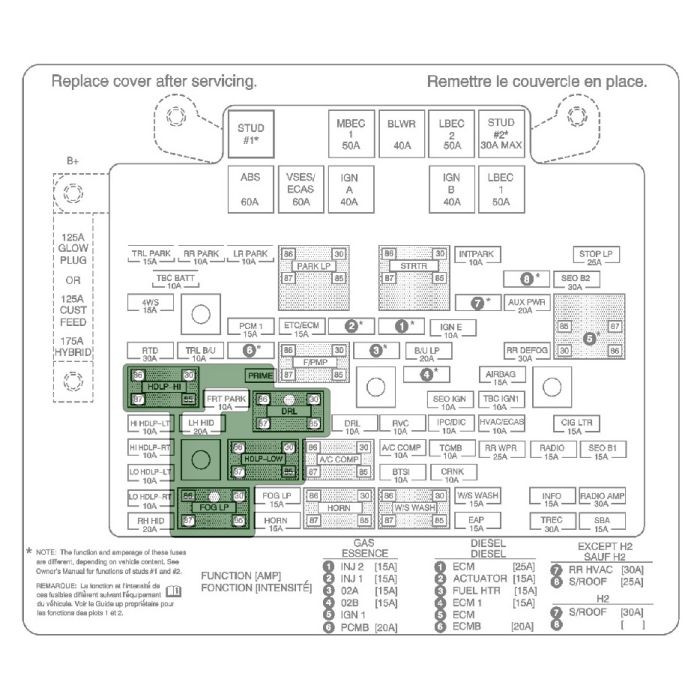

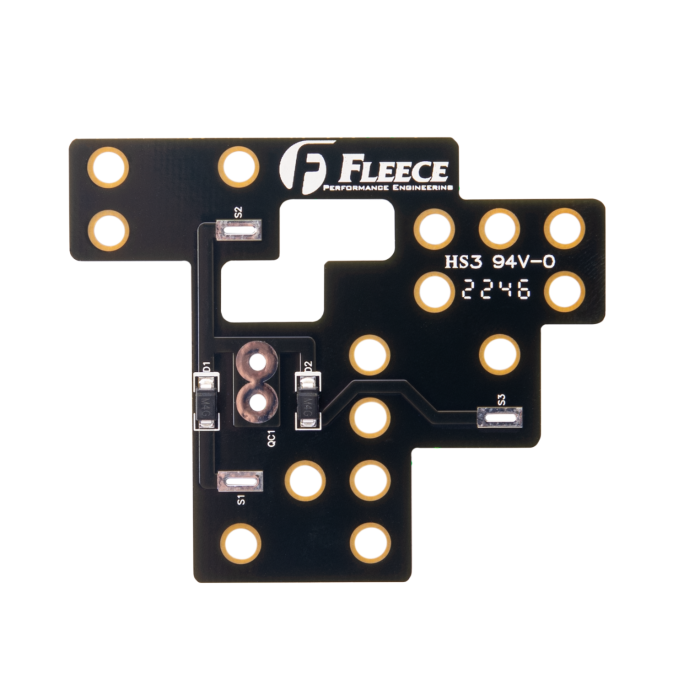

Brighten up your driving experience with this simple upgrade inside your fuse box. Simply install the GM All Lights On Module to allow your high beams, low beams and fog lamps to simultaneously illuminate the road ahead. Once installed the GM All Lights On Module will turn on the high beams, low beams and fog lamps when you turn on your high beams. When the high beams are NOT turned on your low beams and fog lights will function normally. Add the supplied spade terminal to provide a signal ground when the high beams are turned on. This will allow you to control an accessory relay with the high beam switch. WARNING The spade terminal signal ground is NOT intended to provide a high amperage ground. It is only rated for a signal ground that will control a relay. Fitment Guide 2003 2007 Classic 2500 3500 Silverado Sierra Installation 1. Remove the relays labeled FOG LP, HDLP LOW, DRL, HDLP HI 2. Lay the GM All Lights On circuit board in the location shown below 3. Reinstall the four relays back into their original location
